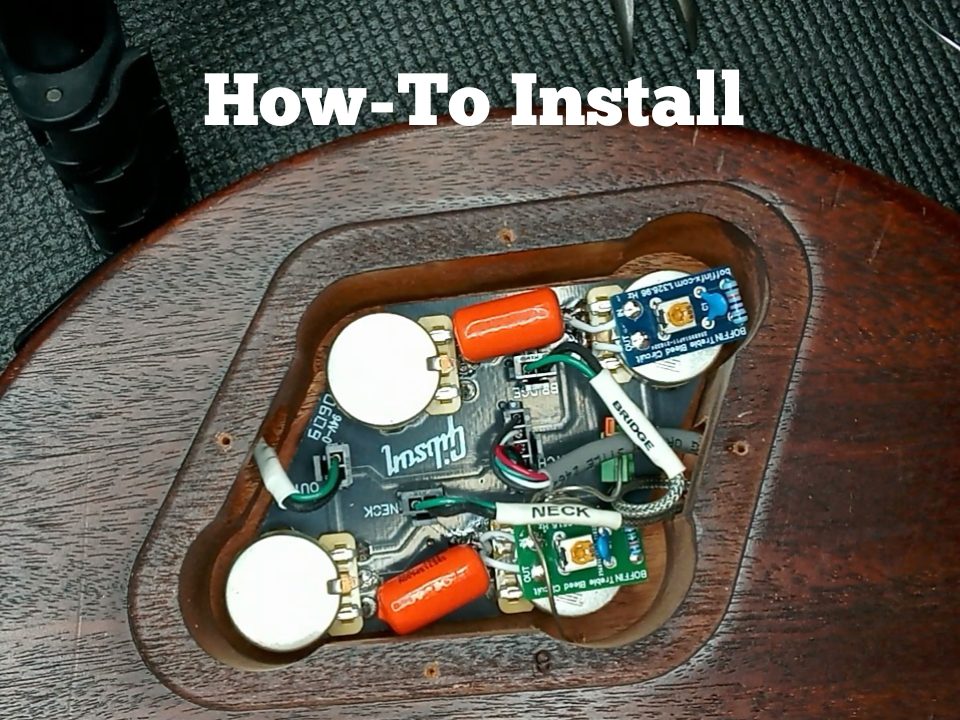

How-To Install a Boffin FX Treble Bleed Upgrade Kit

Please watch the short how-to video.

Step-by-step Instructions

Please use the following wiring diagram to familiarize yourself with the soldering points where the treble bleed circuits and capacitors will be installed.

Gibson Les Paul Circuit Board Controls Wiring

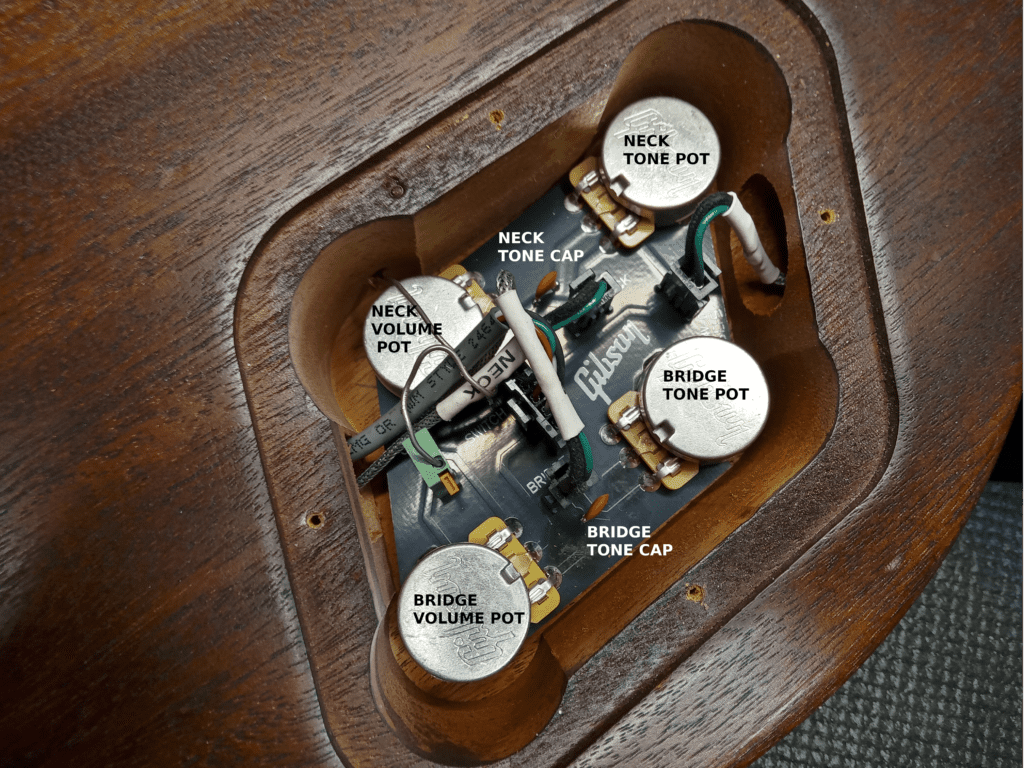

The following photo identifies each component that will be used in the upgrade.

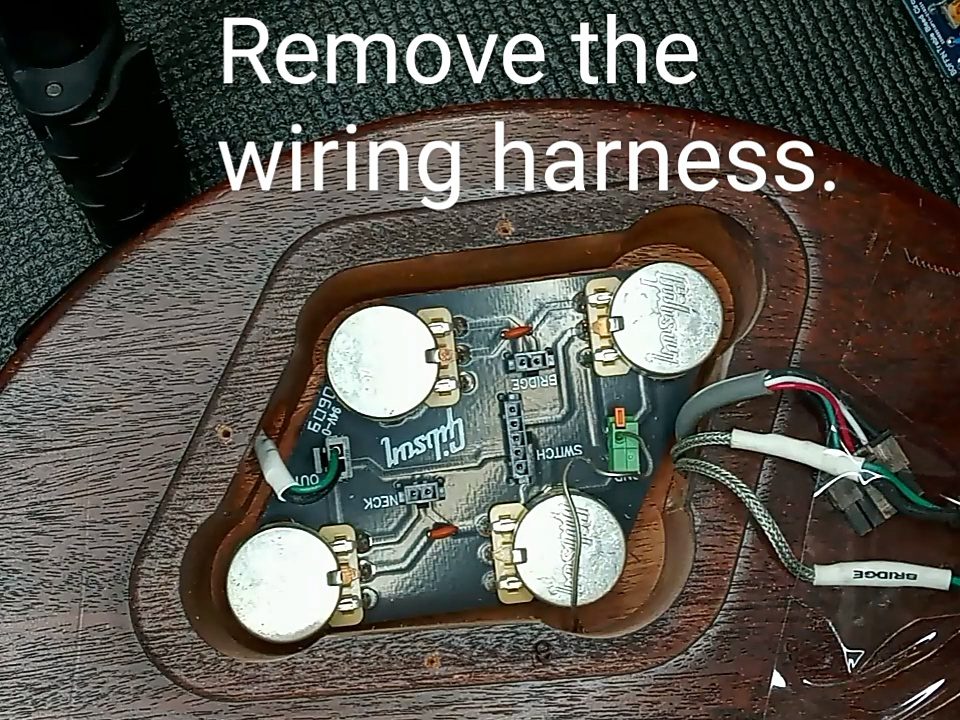

Step 1

Step 2

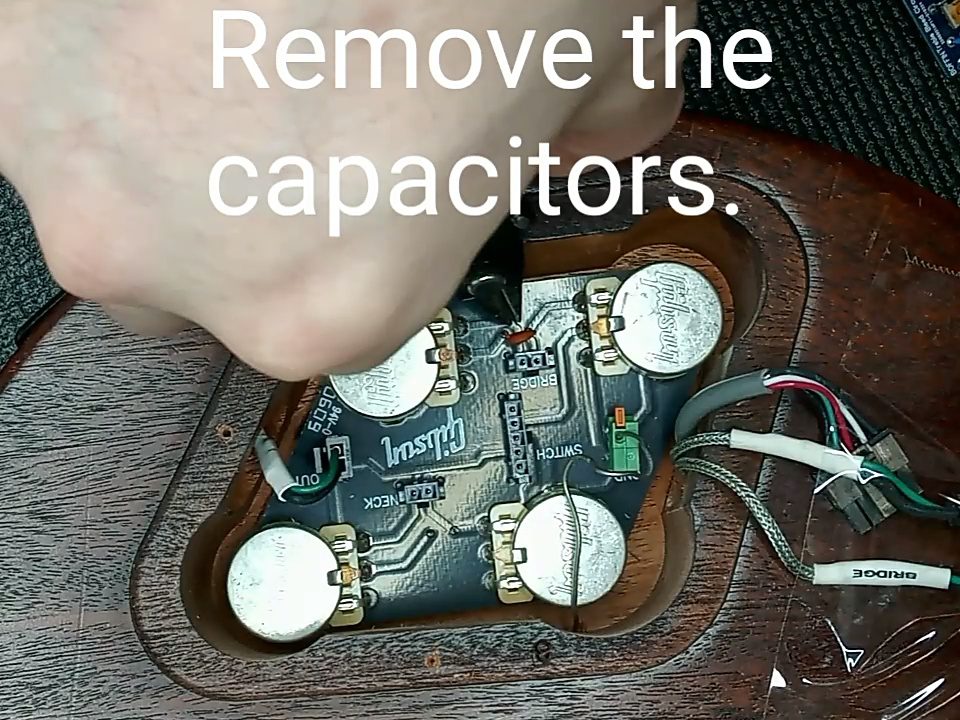

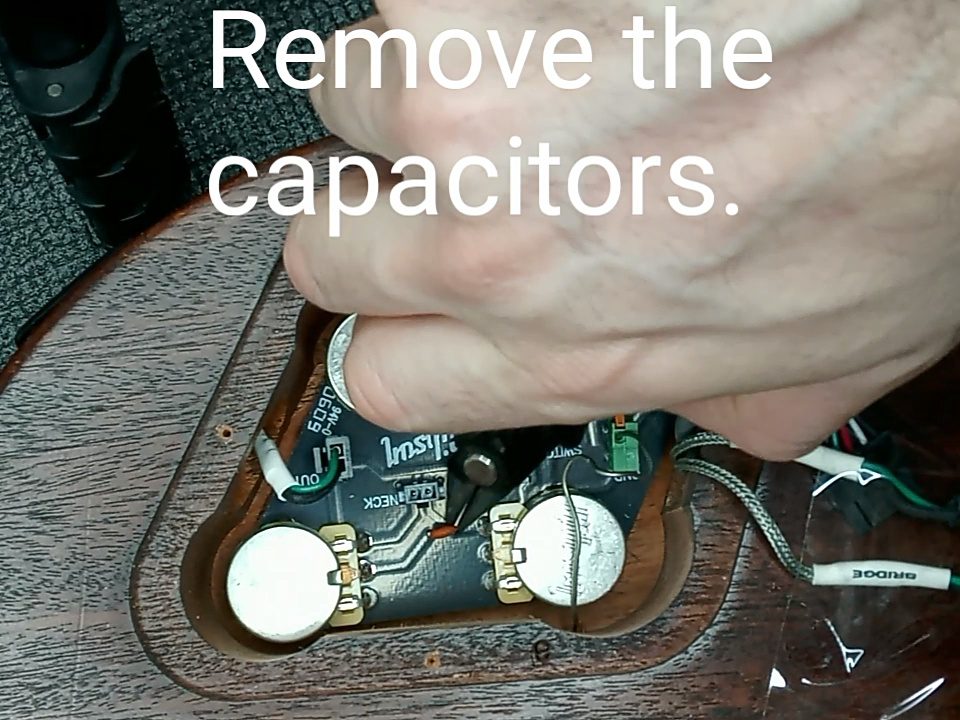

Step 3

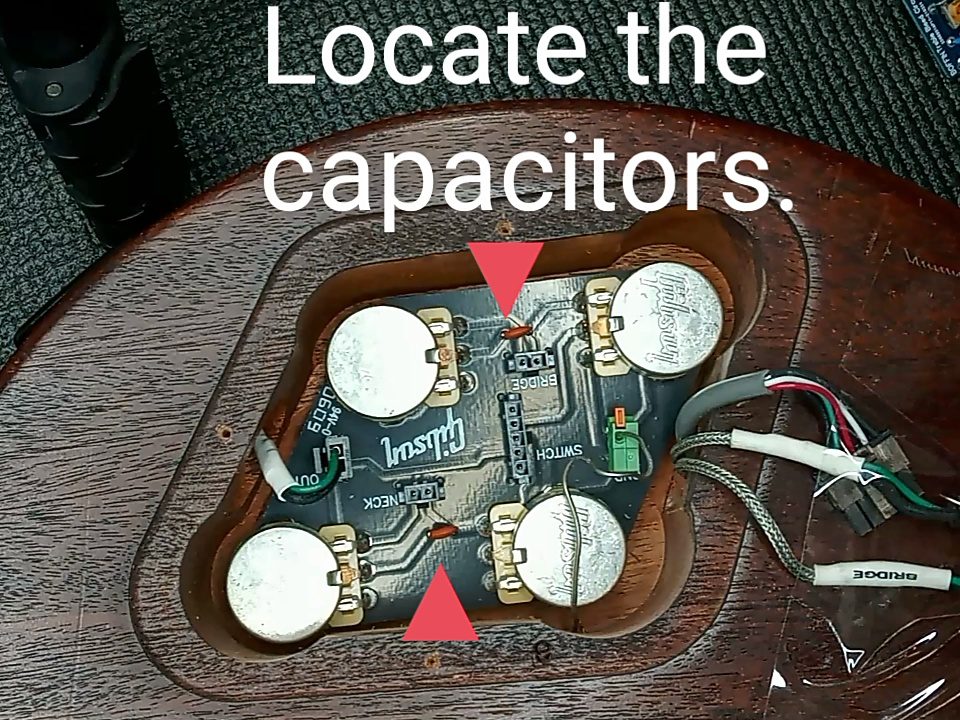

Step 4

Step 5

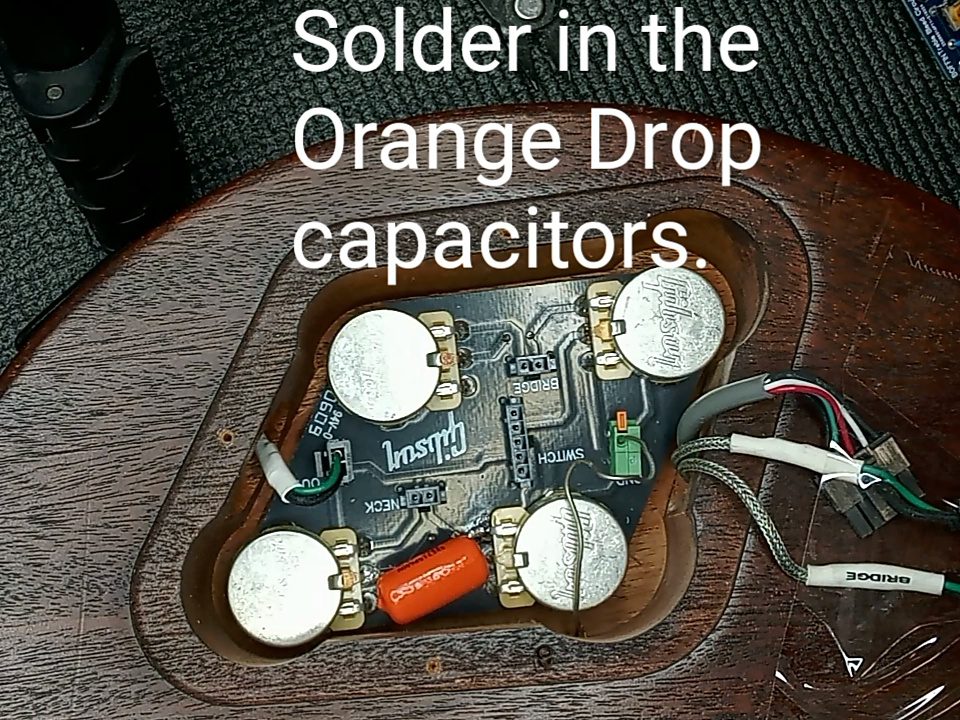

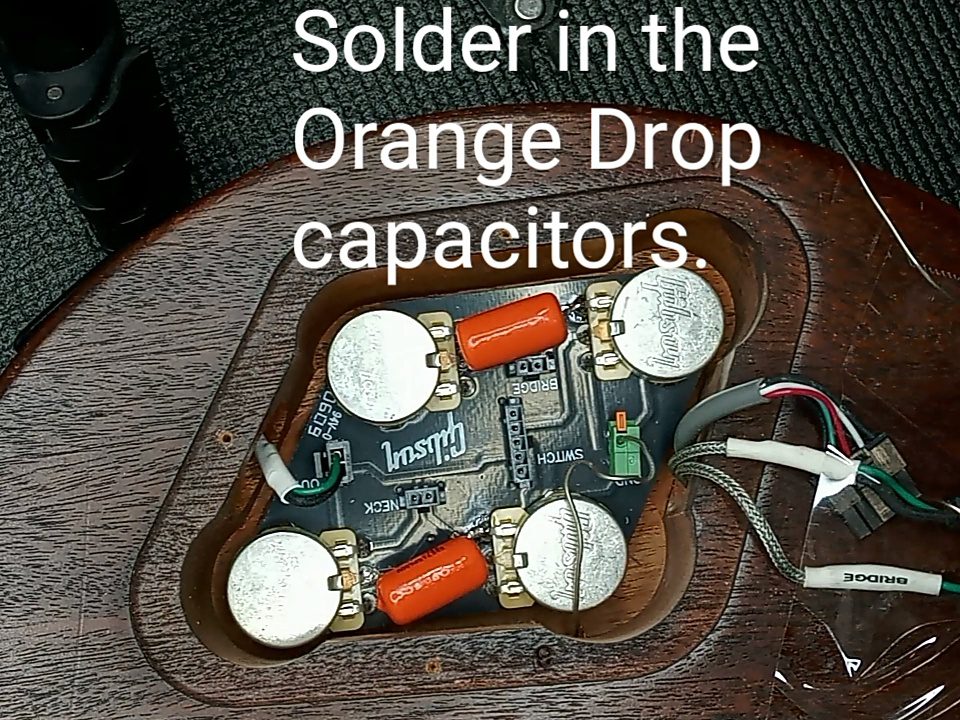

Step 6

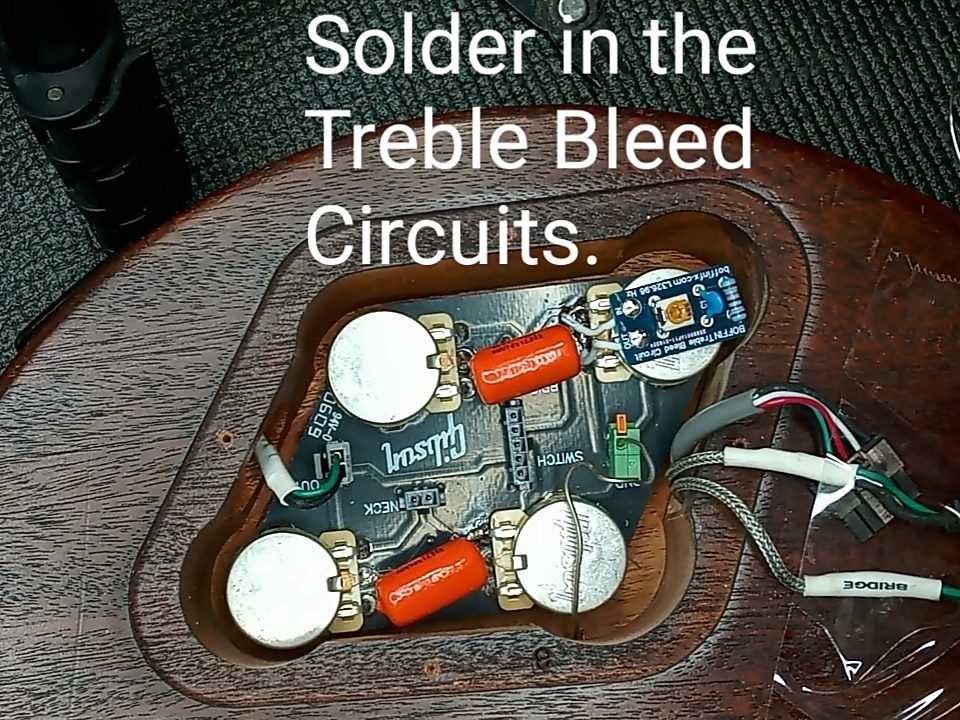

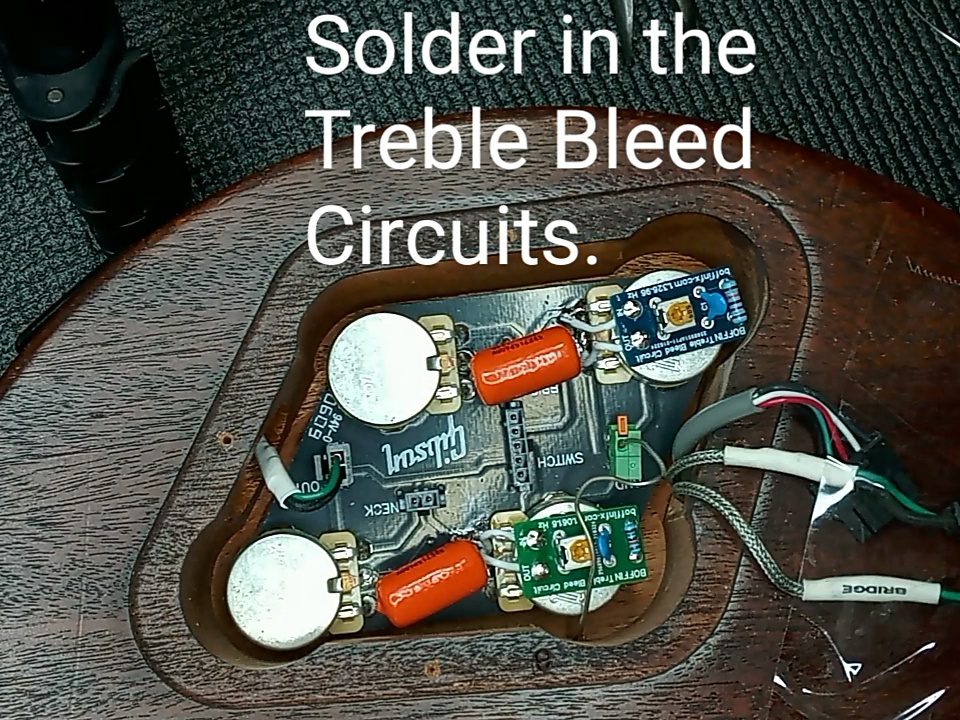

Step 7

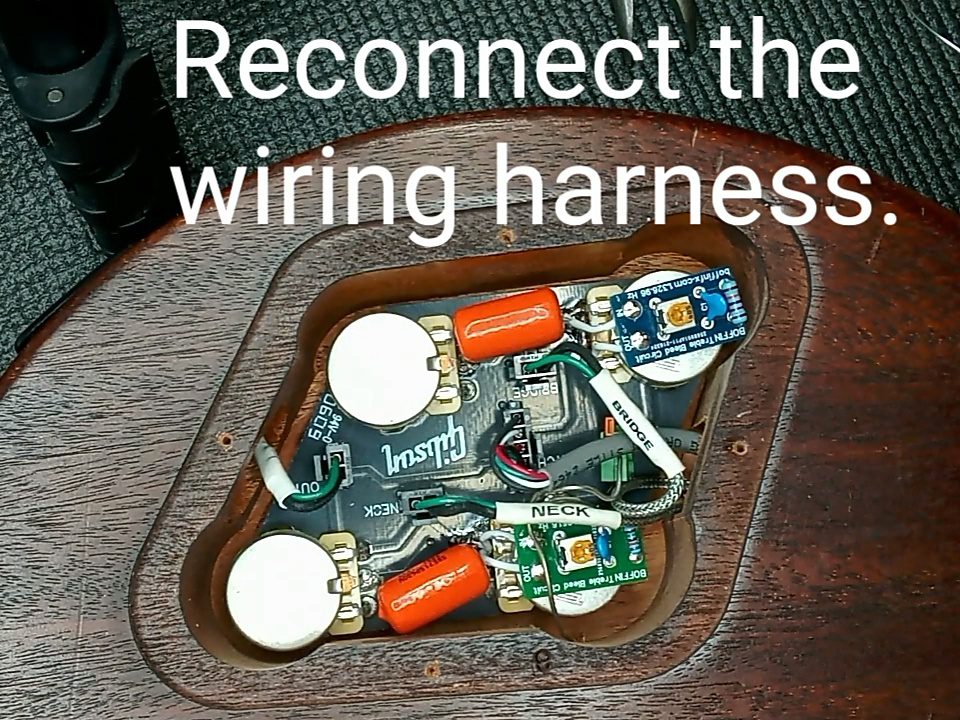

Step 8

Finished.
